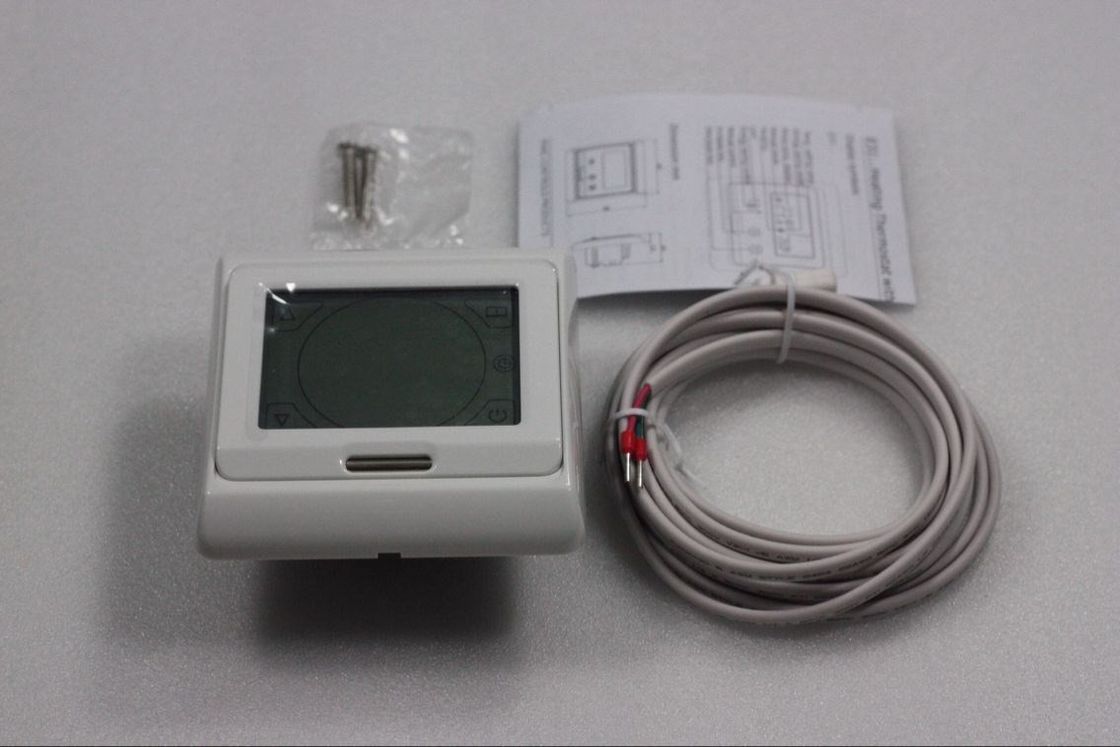

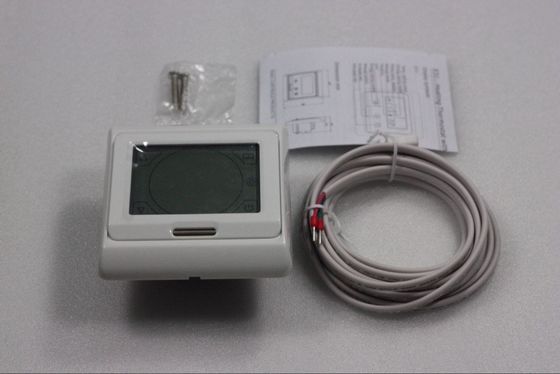

Introduction

• SK91...weekly programming series LCD digital heating thermostat is weekly circulation, this heating thermostat can let you set 6 periods with different setted temperature, also you can select manual mode or periods programming control mode.
• It is used for controlling electrical heating equipments and electric control valve in water-based heating system.
• For the control of warm-water(floor) heating systems and direct electric heating systems used in Commerical buildings, Residential building, Light industrial buildings...

Application

In conjunction with fans and valves, E91... is designed to control the valve in heating or cooling system to maintain the desired setpoint temperature in commercial buildings residential buildings.

Technical data

Voltage: 220V/230V

Power Consumption: 2W

Setting Range: 5-90℃(Can adjust to 35-90℃)

External limitation: 5...60℃(Factory setting: 35℃)

Switch differential: 0.5-10℃ adjustable(Factory setting: ± 1 ℃)

Ambient temperature: -5-50℃

Protection class: IP20

Housing material: Anti-flammable PC

Features

Touch-screen operating interface
7-day programmable function for energy-saving operation
On/off control output for heating device
Symbol indicator when heating is on

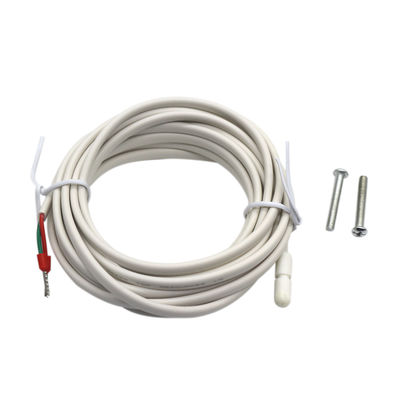

Temperature limitation function for protecting the floor
“Key-lock” function for protecting the setted parameters (especially suitable for Public Places)
Current room temperature displaying when the thermostat is switched-off

Weekly programming

Selection Table

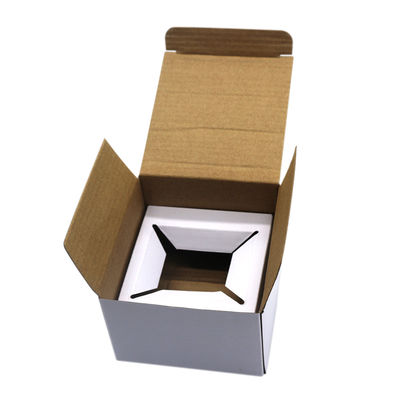

Package

Neutral carton packaging.Each unit packed in retail box.
Carton box material: K=K
350g/pcs, 64pcs/carton.
Inner tray of retail box: 85mm*96mm*35mm
Retail box size: 95mm*100mm*65mm
Carton size:430mm*390mm*290mm

Dimensions
